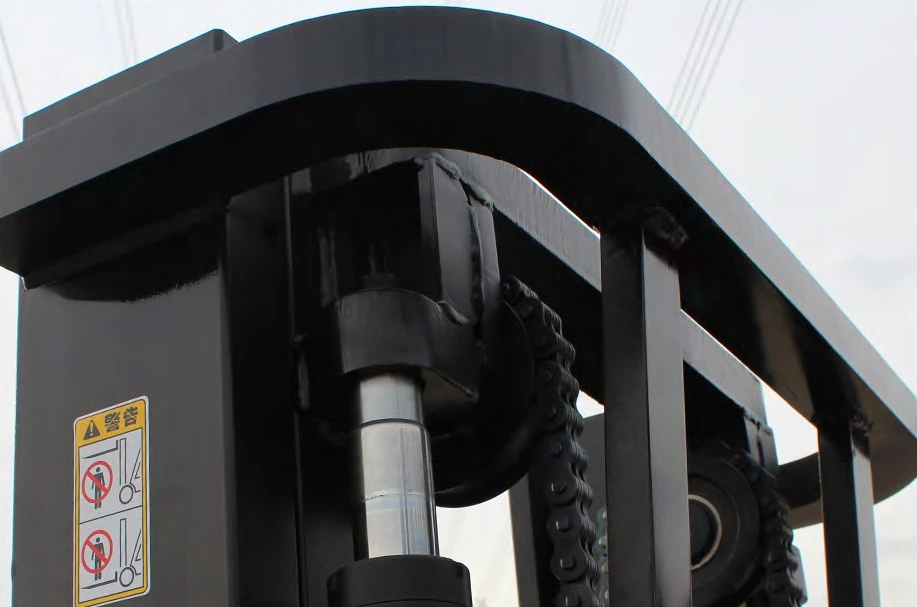

01 / DETAIL VIEWEquipment detail 1
Original catalogue close-up for FY45-H. Ask us to confirm this assembly against your requested configuration.
FEIYANG / EQUIPMENT SERIES01 / 03
Actual catalogue imagery
Swipe or select a view
Swipe or select a view
Diesel / FORKLIFT SERIES

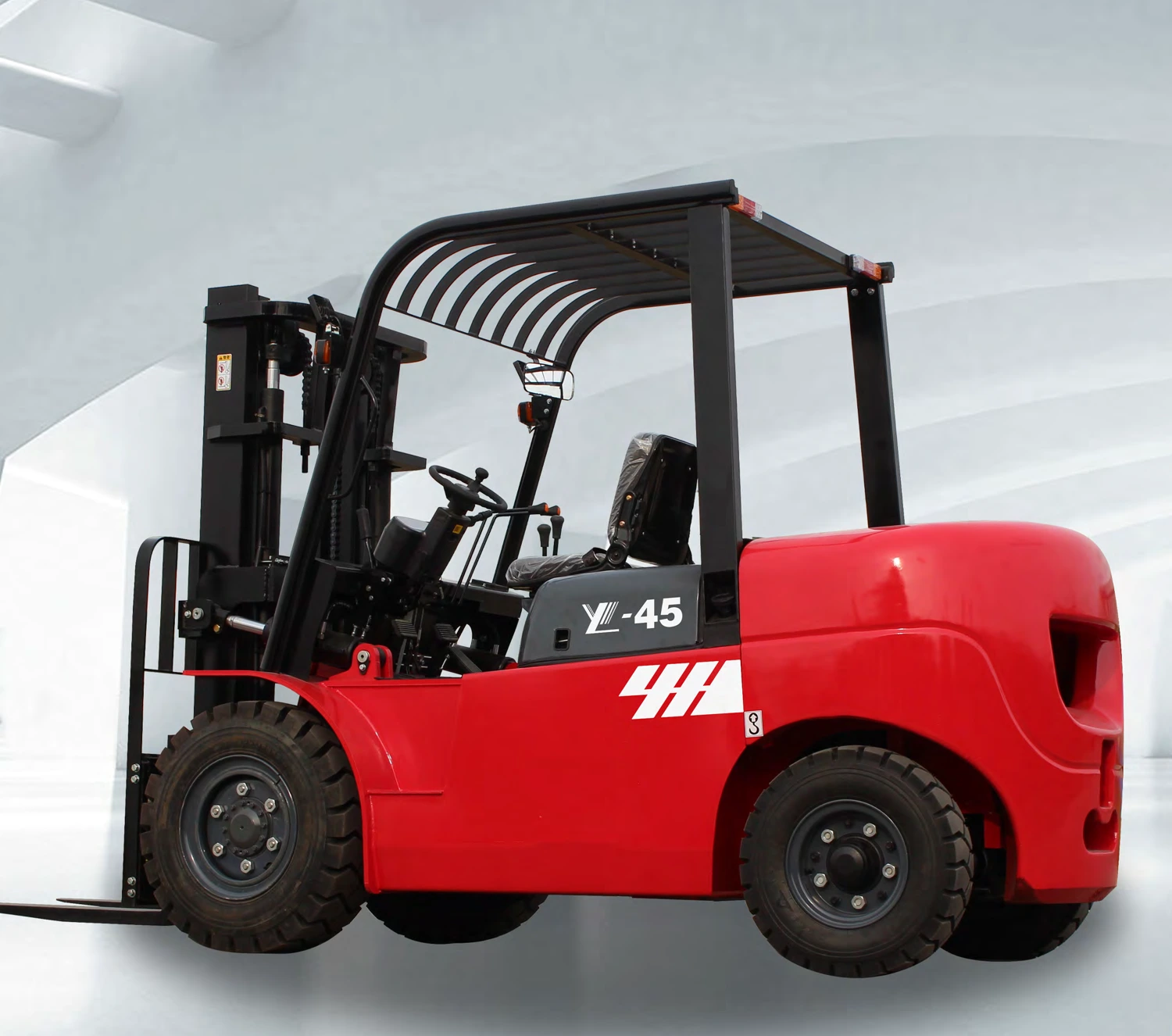

FY45-HFY45-H Diesel Forklift
The equipment. The details.
Your next move.
FY45-H diesel forklift with a rated capacity of 4500 kg and a listed lift height of 3000 mm. Review the verified basic specifications and request a quote for your required configuration.
- Rated capacity
- 4500 kg
- Standard lift height
- 3000 mm
- Power type
- Diesel
Tell us your load, lift height and destination.
We’ll start with the configuration you need.
Rated capacity
4500 kgCatalogue specificationStandard lift height
3000 mmCatalogue specificationPower type
DieselCatalogue specificationLoad centre
500 mmCatalogue specification01 / A CLOSER LOOK
Built into
the details.
Explore the actual equipment shown in the product catalogue. Confirm the final build and configuration in your quotation.
01 / DETAIL VIEW

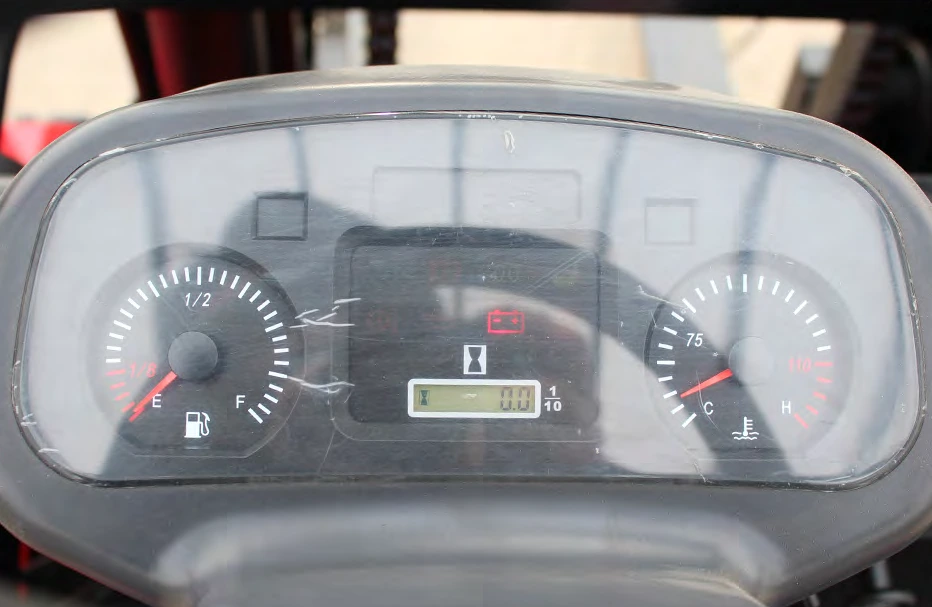

02 / DETAIL VIEWEquipment detail 2
Original catalogue close-up for FY45-H. Ask us to confirm this assembly against your requested configuration.
02 / KNOW YOUR EQUIPMENT
The numbers.
No guesswork.
Verified basic-table fields only. Conflicting weights, incomplete entries and optional mast configurations are excluded; confirm final configuration in your quotation.
Discuss your specification ↗| Rated capacity | 4500 kg |
|---|---|
| Lift height | 3000 mm |
| Load centre | 500 mm |
| Free lift height | 150 mm |
| Length without forks | 3240 mm |
|---|---|
| Overall width | 1480 mm |
| Mast lowered height | 2275 mm |
| Overhead guard height | 2350 mm |
| Wheelbase | 2100 mm |
| Turning radius | 3050 mm |
| Engine model | 4D35G |
|---|---|
| Engine manufacturer | Quanchai/xinchai |
| Engine output / speed (as printed) | 48/2300 |
| Fuel tank capacity | 90 L |
| Displacement | 2540 cc |
| Transmission | Mechanical/Hydraulic |
03 / DEFINE YOUR BUILD
The right
configuration.
Standard catalogue data and optional equipment are different. Your final quotation should identify both clearly.
Your starting specification.
FY45-H · 4500 kg · 3000 mm
The verified basic specifications are listed above. They do not confirm an optional mast or attachment.
Specify what your work requires.
Optional-equipment availability has not yet been verified for this model. Include your clearance, load and attachment requirements in your enquiry.
Discuss available configurations ↗04 / START WITH THE JOB
Where will
you put it to work?
Application planning questions—not confirmed suitability claims. Share your operating conditions so the equipment can be assessed.
What are you moving?
Load weight, dimensions, centre of gravity and pallet type.
Where will it operate?
Surface condition, gradients, aisle width and ventilation.
How will you use it?
Daily operating hours, lift cycles and required clearance.
