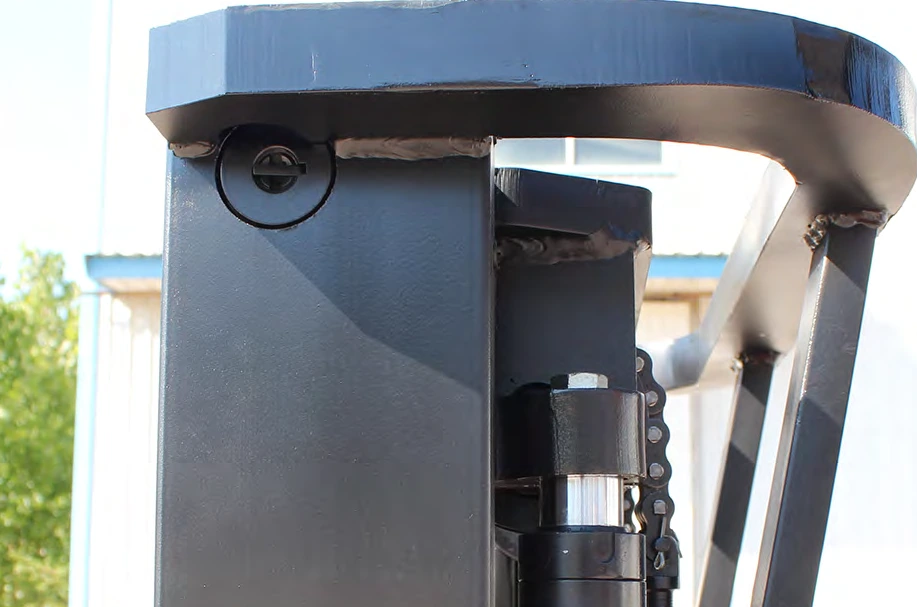

01 / DETAIL VIEWEquipment detail 1
Original catalogue close-up for FY25-KII. Ask us to confirm this assembly against your requested configuration.
FEIYANG / EQUIPMENT SERIES01 / 03
Actual catalogue imagery
Swipe or select a view
Swipe or select a view
Diesel / FORKLIFT SERIES

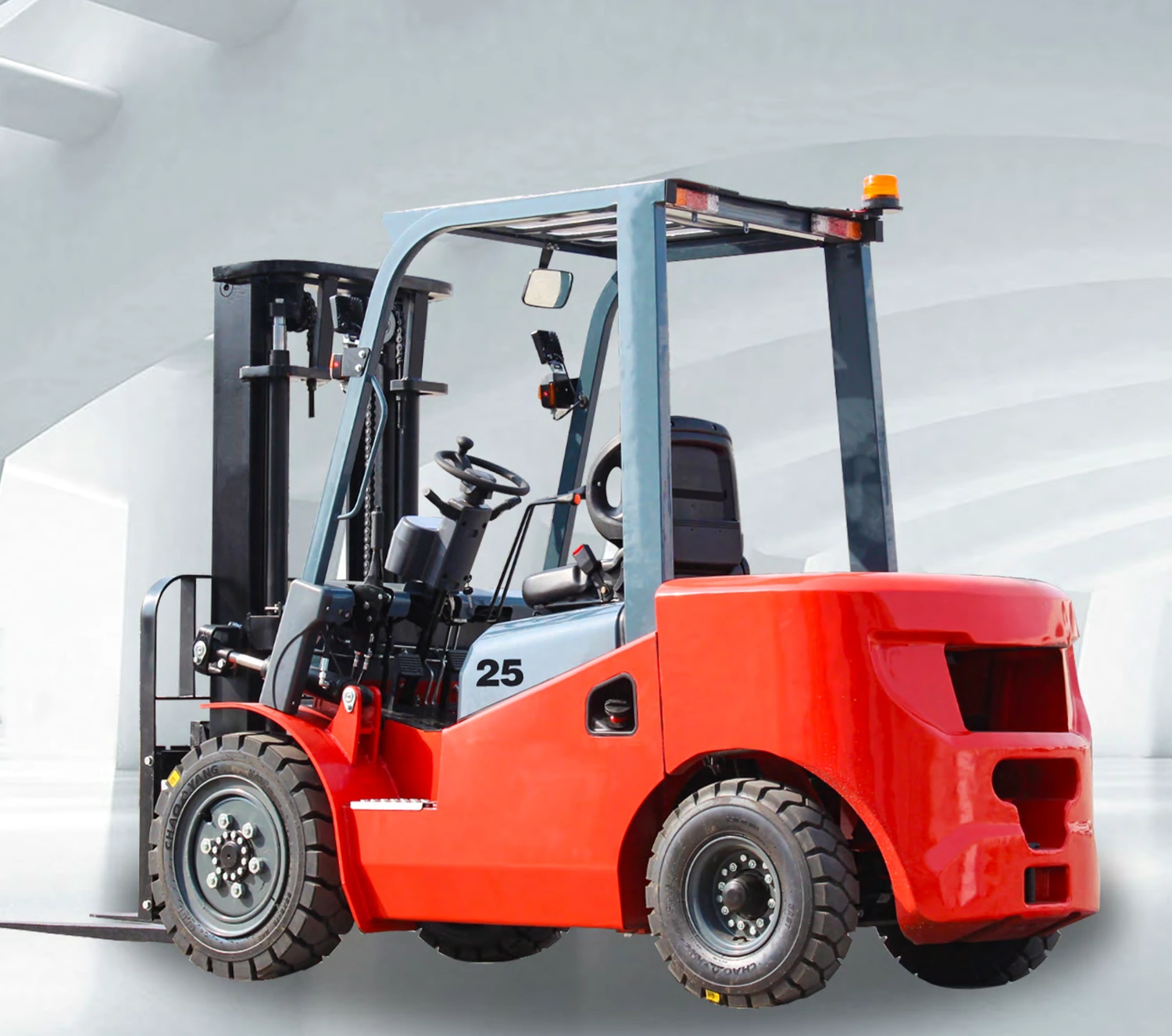

FY25-KIIFY25-KII Diesel Forklift
The equipment. The details.
Your next move.
FY25-KII diesel forklift with a rated capacity of 2500 kg and a listed lift height of 3000 mm. Review the verified basic specifications and request a quote for your required configuration.
- Rated capacity
- 2500 kg
- Standard lift height
- 3000 mm
- Power type
- Diesel
Tell us your load, lift height and destination.
We’ll start with the configuration you need.
Rated capacity
2500 kgCatalogue specificationStandard lift height
3000 mmCatalogue specificationPower type
DieselCatalogue specificationLoad centre
500 mmCatalogue specification01 / A CLOSER LOOK
Built into
the details.
Explore the actual equipment shown in the product catalogue. Confirm the final build and configuration in your quotation.
01 / DETAIL VIEW

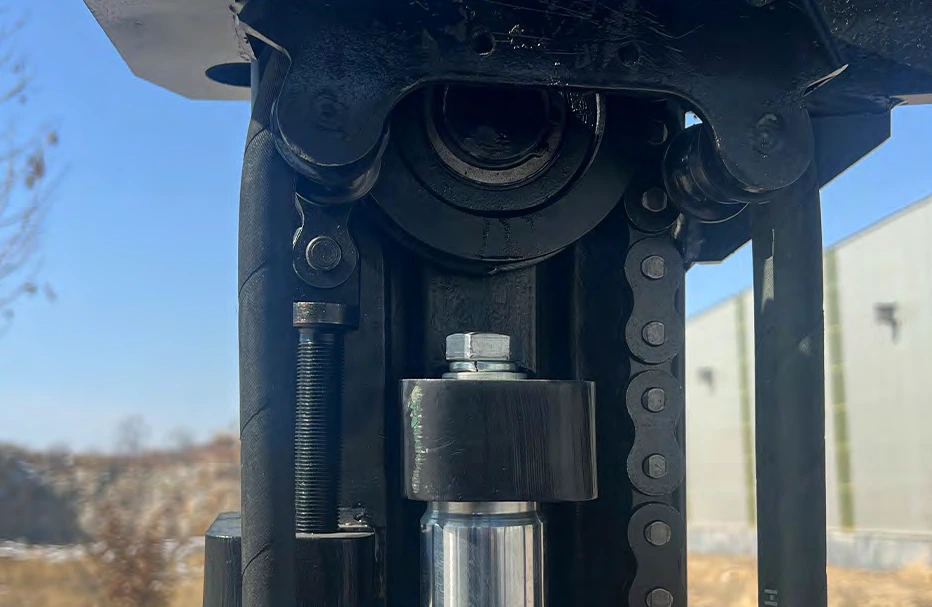

02 / DETAIL VIEWEquipment detail 2
Original catalogue close-up for FY25-KII. Ask us to confirm this assembly against your requested configuration.
02 / KNOW YOUR EQUIPMENT
The numbers.
No guesswork.
Verified basic-table fields only. Conflicting weights, incomplete entries and optional mast configurations are excluded; confirm final configuration in your quotation.
Discuss your specification ↗| Rated capacity | 2500 kg |
|---|---|
| Lift height | 3000 mm |
| Load centre | 500 mm |
| Free lift height | 130 mm |
| Service weight | 3510 kg |
|---|---|
| Length without forks | 2595 mm |
| Overall width | 1160 mm |
| Mast lowered height | 1980 mm |
| Overhead guard height | 2220 mm |
| Wheelbase | 1650 mm |
| Turning radius | 2480 mm |
| Engine model | QC490BPG |
|---|---|
| Engine manufacturer | Quanchai/Xinchai |
| Engine output / speed (as printed) | 39/2650 |
| Fuel tank capacity | 60 L |
| Displacement | 2540 cc |
| Transmission | Mechanical/Hydraulic |
03 / DEFINE YOUR BUILD
The right
configuration.
Standard catalogue data and optional equipment are different. Your final quotation should identify both clearly.
Your starting specification.
FY25-KII · 2500 kg · 3000 mm
The verified basic specifications are listed above. They do not confirm an optional mast or attachment.
Specify what your work requires.
Optional-equipment availability has not yet been verified for this model. Include your clearance, load and attachment requirements in your enquiry.
Discuss available configurations ↗04 / START WITH THE JOB
Where will
you put it to work?
Application planning questions—not confirmed suitability claims. Share your operating conditions so the equipment can be assessed.
What are you moving?
Load weight, dimensions, centre of gravity and pallet type.
Where will it operate?
Surface condition, gradients, aisle width and ventilation.
How will you use it?
Daily operating hours, lift cycles and required clearance.
05 / KEEP EXPLORING
Find your next move.
LET’S PLAN YOUR NEXT MOVE
Your load.
Our next conversation.
Start with FY25-KII.
Share quantity, destination and the work ahead.
FY25-KIILet’s talk equipmentRequest a Quote ↗
