Your starting specification.
FY-50 · 5000 kg · 3000 mm
The verified basic specifications are listed above. They do not confirm an optional mast or attachment.
FEIYANG / EQUIPMENT SERIES01 / 01
Actual catalogue imagery
Swipe or select a view
Swipe or select a view
Electric / FORKLIFT SERIES

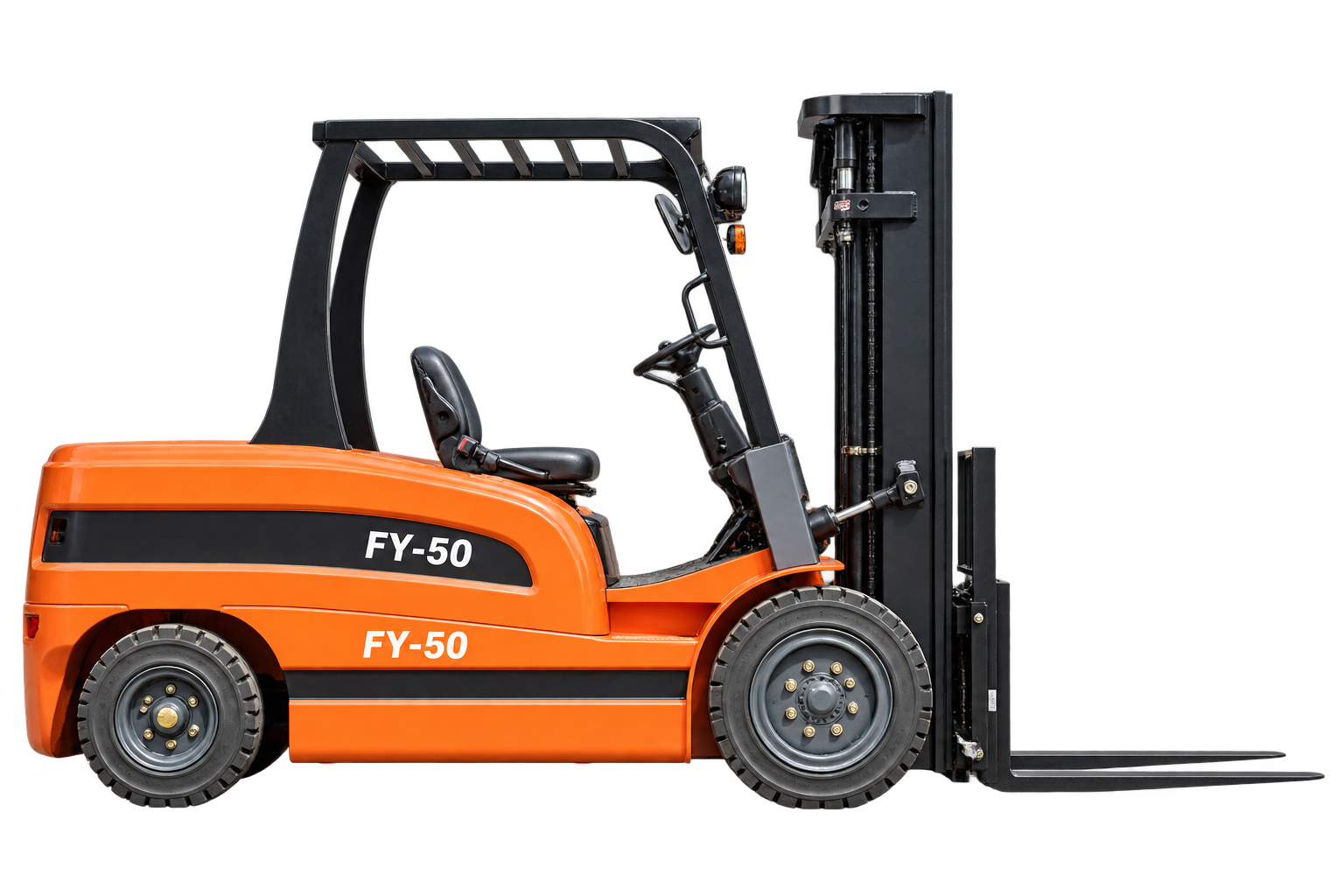

FY-50FY-50 Electric Forklift
The equipment. The details.
Your next move.
FY-50 electric forklift with a listed rated capacity of 5000 kg and lift height of 3000 mm. The supplied configuration sheet specifies an 80 V system, 16000 W travel motor and 13000 W lifting motor. Confirm the required configuration when requesting a quote.
- Rated capacity
- 5000 kg
- Standard lift height
- 3000 mm
- Power type
- Electric
Tell us your load, lift height and destination.
We’ll start with the configuration you need.
Rated capacity
5000 kgCatalogue specificationStandard lift height
3000 mmCatalogue specificationPower type
ElectricCatalogue specification01 / A CLOSER LOOK
Built into
the details.
Explore the actual equipment shown in the product catalogue. Confirm the final build and configuration in your quotation.
Additional verified detail photography is pending.
02 / KNOW YOUR EQUIPMENT
The numbers.
No guesswork.
User-confirmed configuration sheet; charging and operating duration lack stated test conditions. Confirm optional equipment and battery pack arrangement.
Discuss your specification ↗| Rated capacity | 5000 kg |
|---|---|
| Lift height | 3000 mm (customizable) |
| Dimensions without forks (L x W x H) | 3100 x 1200 x 2100 mm |
| Body material | Thickened steel plate |
| Lift cylinders | Reinforced sealed wear-resistant twin cylinders |
| Mast | 160# standard steel section (as listed) |
| Steering | Hydraulic power steering |
| Front axle | 404 suspended cast-steel axle (as listed) |
| Rear axle | Reinforced steel-plate axle |
| Front tyres | 28x9-15, solid |
| Rear tyres | 650-10, solid |
| Braking | Hand brake and hydraulic brake |
| Charging time (configuration sheet) | 6–8 hours |
| Operating duration (configuration sheet) | 3–4 hours; operating conditions not specified |
| Gradeability (configuration sheet) | 20 degrees; test conditions not specified |
| Dimensions with forks (L x W x H) | 4300 x 1200 x 2100 mm |
| Service weight | 6000 kg |
|---|---|
| Fork length | 1200 mm, forged |
| Turning radius (configuration sheet) | 2.7 m |
| Voltage | 80 V |
|---|---|
| Travel motor | 16000 W |
| Lift motor | 13000 W |
| Battery configuration (as printed) | Ten 73 Ah lead-acid batteries; total pack capacity not inferred |
03 / DEFINE YOUR BUILD
The right
configuration.
Standard catalogue data and optional equipment are different. Your final quotation should identify both clearly.
Specify what your work requires.
Optional-equipment availability has not yet been verified for this model. Include your clearance, load and attachment requirements in your enquiry.
Discuss available configurations ↗04 / START WITH THE JOB
Where will
you put it to work?
Application planning questions—not confirmed suitability claims. Share your operating conditions so the equipment can be assessed.
What are you moving?
Load weight, dimensions, centre of gravity and pallet type.
Where will it operate?
Surface condition, gradients, aisle width and ventilation.
How will you use it?
Daily operating hours, lift cycles and required clearance.
